Model Number : YE-63 ( 0-30 IWC)
Place of Origin : China
MOQ : 1000 pcs
Price : Negotiable
Payment Terms : T/T, L/C
Delivery Time : 20-40 work days
Packaging Details : Inner paper box for each pressure gauge
Product Name : Capsule Pressure gauge
Connection : 1/8", 1/4" NPT/BSP/BSPT or made according to customers' request
Mount : Lower mount
Face dial : 2.5", 3" or 4"
Pointer : zero adjustment
Setting : with zero adustment setting
Range : 0-30 IWC
Accuracy : 1.6%

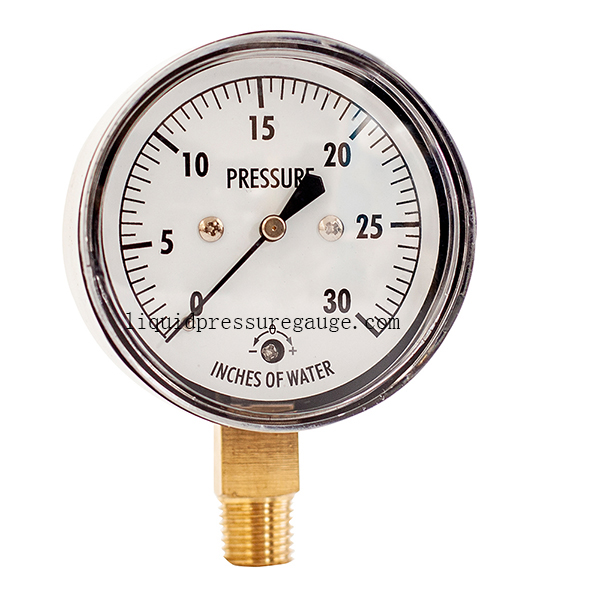

2-1/2 Capsule low Pressure Gauge,0-30 IWC ,1/4 NPT lower mount, safety glass window, steel case and brass internal
Application:
Diaphragm pressure is mainly applied to boiler ventilation and gas medium micro pressure and vacuum. Ordinary diaphragm pressure gauge is used to measure non-explosion-proof type medium micro pressure and negative pressure. This gauge can local mounting and local indicating.The measuring range covers from vacuum to 30 IWC.
Features:
- Range: 0-30 IWC
- With zero point adjustment setting
- 1/4 NPT lower mount
- Steel case
- PC window
- Brass internal
- Dial: 2-1/2"
- Opitional: 4 inch
Product name | Capsule pressure gauge |
Application | It is used for measuring micro pressure of air, gas or liquid which does corrode copper alloy. |
Face dia | 2.5", 3" , 4" |
Case | black painted steel or chromed steel |
Connetion & socket | brass |
Capsule | copper alloy |
Movement | brass |
Pointer and dial | aluminum |
Window | acrylic |
Range | Vacuum, compound, 0-60 IWC |
Mount | lower mount |
Setting | zero adustment setting |
Accuracy | ±1.6% |
![]() |
