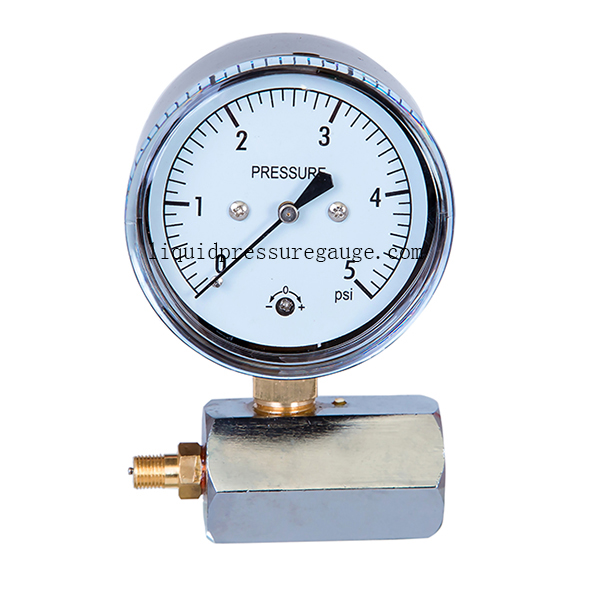

Valve 5 Psi 6.3cm Capsule Pressure Gauge brass internal 1/8'' NPT

Product Categories

Yueqing Jintu Trading Co.,Ltd

Contact Now

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 300,000 pcs per month

Delivery Time : 20-40 work days

Packaging Details : Inner paper box for each pressure gauge

Model Number : YE-63 ( 0-5 psi ,with valve)

Product Name : Capsule Pressure gauge with valve

Connection : 1/4",3/8", 1/2" NPT/BSP/BSPT or made according to customers' request

Mount : Lower mount

Face dial : 2.5", 3" or 4"

Pointer : zero adjustment

Range : 0-15 psi

Capsule : copper alloy

Spare parts : with valve

Contact Now

2-1/2 Capsule low Pressure Gauge with valve, 0-5 psi ,1/4 NPT lower mount, safety glass, steel case and brass internal

For accurate measuring air, water, natural gas, or other medias not corrosive to copper alloy.The measuring range covers from vacuum to 5 psi.

Features:

- Range: 0-5 psi

- With zero point adjustment setting

- With valve (3/4 NPT female connection, 1/8 NTP male vent connection )

- Steel case

- PC window

- Brass internal

- Dial: 2-1/2"

- Opitional: 4 inch

Product name	Capsule pressure gauge with valve
Application	It is used for measuring micro pressure of air, gas or liquid which does not corrode copper alloy.
Face dia	2.5", 3" , 4"
Case	black painted steel or chromed steel
Connetion & socket	brass
Capsule	copper alloy
Movement	brass
Pointer and dial	aluminum
Window	acrylic
Range	Vacuum, compound, 0-15 psi
Mount	bottom connection ( lower mount) or back mount
Setting	zero adjustment setting
Accuracy	±1.6%

Valve 5 Psi 6.3cm Capsule Pressure Gauge brass internal 1/8'' NPT
