Model Number : YN-60 ( -30 inHg-30 psi )
Place of Origin : China
MOQ : 1000 pcs
Price : Negotiable
Payment Terms : T/T, L/C
Supply Ability : 400,000 pcs per month
Delivery Time : 20-40 work days
Packaging Details : Inner paper box for each pressure gauge
Product Name : liquid filled Pressure gauge
Connection : 1/4" NPT/BSP/BSPT or made according to customers' request
Liquid filled : glycerine, silicone oil
Mount : Lower mount
Case : Stainless steel
Connetion & socket : Brass
Range : -30 inHg-30 psi
Accuracy : 2.5%

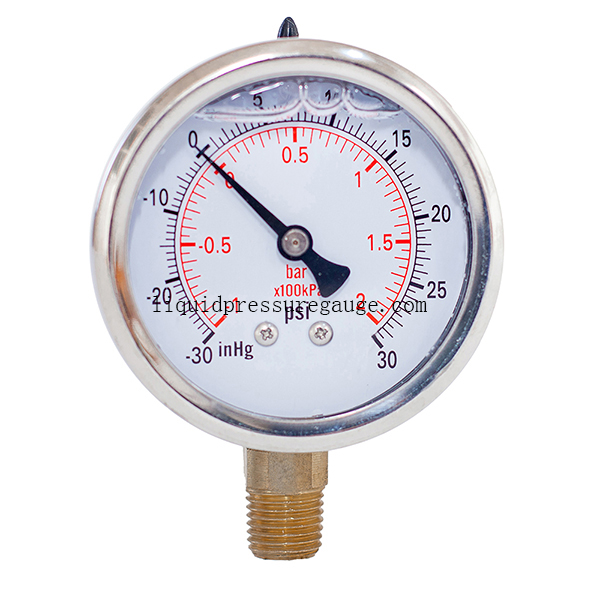

2-1/2 inch compound Gauge, glycerine, -30 inHg-30 psi/bar, 1/4 BSP lower mount, stainless steel case and brass internal
This is compound gauges. For measuring points with high dynamic pressure loads or vibrations.The measuring range is -30 inHg-30 psi.
Features:
- Compound gauges
- Range: -30 inHg-30 psi
- Dia: 2-1/2
Product name | Liquid filled compound gauge (vacuum gauge ) |
Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
Face dia | 2", 2-1/2" |
Case | stainless steel |
Ring | stainless steel |
Connetion & socket: | brass |
Movement | brass |
Pointer and dial | aluminum |
Window | safety glass |
Liquid | glycerine, silicone oil |
Range | Vacuum, compound, 0-15,000 psi |
Mount | Lower mount |
Accuracy | ±2.5% |
Opitional 1 | with flange |
Opitional 2 | U-clamp |
![]() |
2.5IN Lower Back Mount Dial Liquid Filled Pressure Gauges -30InHg 1/4 BSP Images |
