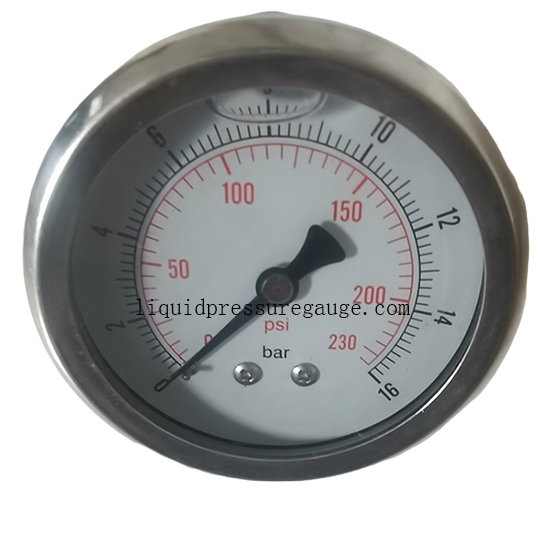

2-1/2 inch liuqid fillled Pressure Gauge, glycerine, silicone oil, stainless steel, 0-230psi/bar, 1/4 BSP back mount,

Model Number : YN-60ZBF ( 0-230 psi )

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 400,000 pcs per month

Delivery Time : 20-40 work days

Packaging Details : Inner paper box for each pressure gauge

Product Name : liquid filled Pressure gauge

Connection : 1/4" NPT/BSP/BSPT or made according to customers' request

Liquid filled : glycerine, silicon oil

Mount : Back mount

Case : Stainless steel

Connetion & socket : stainless steel

Range : Vacuum, compound, 15,000 psi

Accuracy : 2.5%

Contact Now

2-1/2 inch liuqid fillled Pressure Gauge, glycerine, silicone oil, stainless steel, 0-230psi/bar, 1/4 BSP back mount,

The gauge is used for measuring pressure of air, gas or liquid which dose not corrode copper alloy. It used for measuring media pressure with vibration or pulsation. The measuring range can covers from Vacuum to 15,000 psi.

Features:

- Stainless steel case

- Stainless steel internal

- Aluminum pointer

- 1/4 NPT back mount

- Dial: 2-1/2"

- Opitinal: 2"

Product name	Liquid filled pressure gauge
Application	It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation.
Face dia	1-1/2", 2", 2-1/2"
Case	stainless steel
Ring	stainless steel
Connetion & socket:	Stainless steel
Movement	Stainless steel
Pointer and dial	aluminum
Window	safety glass
Liquid	glycerine, silicone oil
Range	Vacuum, compound, 0-15,000 psi
Mount	Back mount
Accuracy	±2.5%
Opitional 1	with flange
Opitional 2	U-clamp
